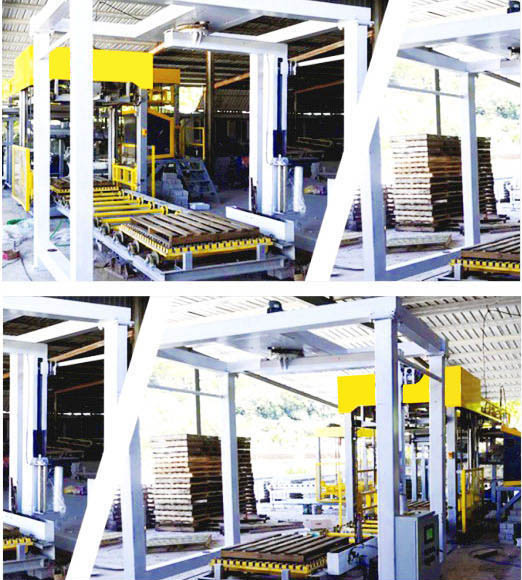

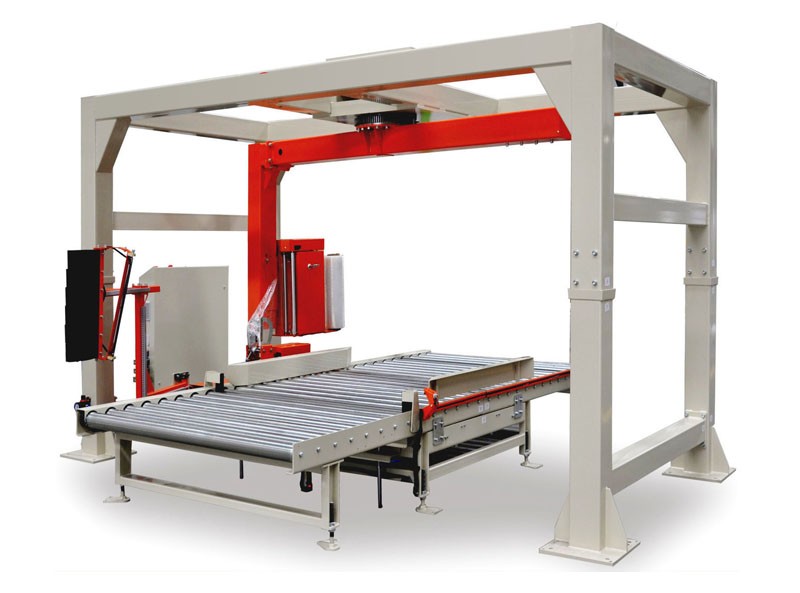

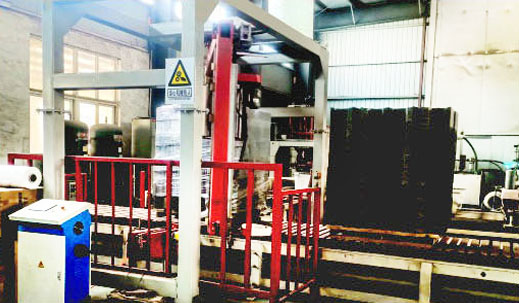

automatic cantilever winding film packaging machine

Package   Size

(500-1200)mmx(500-1200)x2200mm(LxWxH)

Lifting   parts

Chain   guide rail lifting mechanism, the lifting speed can be adjusted by frequency   conversion

Cantilever   speed

0-20RPM   adjustable

Conveyor   system

Conveyor   line height: 400mm, speed: 8-15mm, bearing capacity: 2000kg

Packaging   efficiency

≥25 Torr/h

Control   System

PLC   control, adjustable parameters, adjustable film length, automatic sensing of   cargo size

Membrane   system

Electric   pre-stretching film, the stretching ratio can reach 250%, and the speed can   be adjusted by frequency conversion

Motor   Power

Cantilever:   1.1kw; Formwork: 0.37kw; Lifting parts: 0.37kw, top film: 0.37kw

Automatic   film breaking device

Automatic   clamping and cutting of the film without any tailing, completely automatic   completion by no one

power   supply

4KVA/AC380V/50Hz,   3PH/N/PE

top   membrane

PE/PVC   film, width 1800mm, diameter 100-300mm, height 30-100mm

Gas   source

0.4-0.6mpa,   350NL/min

Stretch   film

LLDPE   stretch film, width: 1800mm, thickness: 20-35mm

Equipment   size

4500x2200x3500mm(LxWxH)(According   to actual situation)
