Fully Automatic Brick Collecting Machine Block Pallet Separator

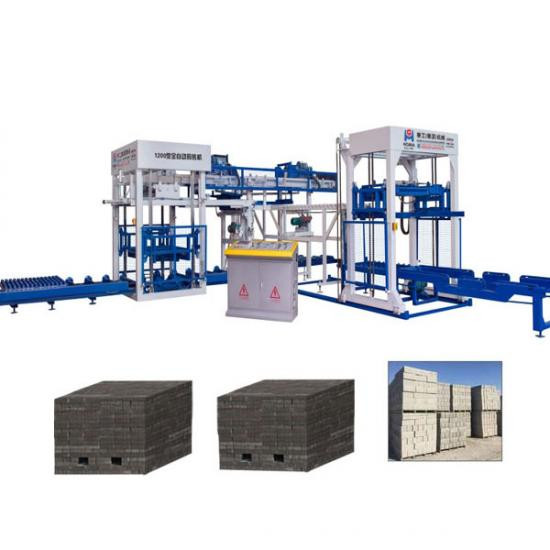

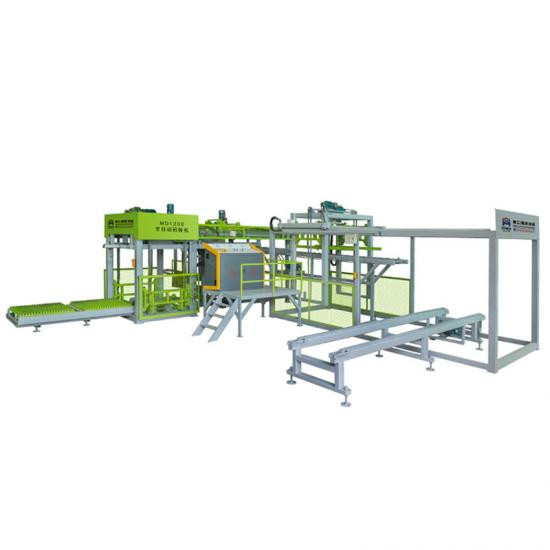

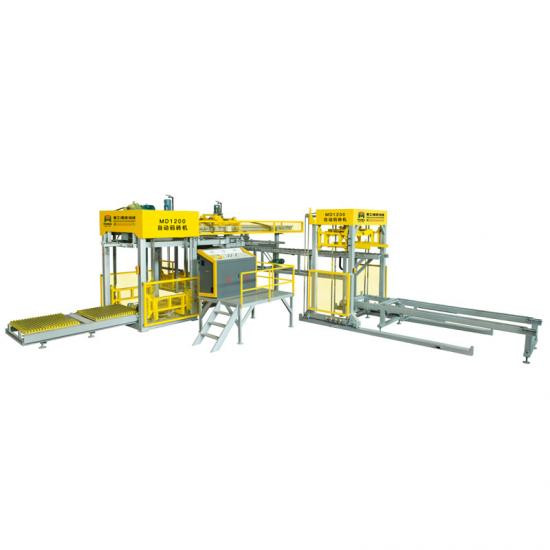

HGMA automatic low position separated brick block collection machine block palletizer
1.automatic brick block collection machine is the stacking way cured blocks that commonly used in the automatic block brick making machine plant, which is known to be greatly efficient and lower labor-cost. Our block collection machine is developed with higher automation, which can stack the block more quickly and efficiently. The device highly reduces the labor’s working intensity and save the labor cost. It can be used for concrete/ cement blocks.
2. Being equipped with a touch panel, makes the operation more intuitive and convenient.
Components: pallet clamp, walking rack, block clamp, pedestal, electronic control system, hydraulic system.
3. It is suitable for different kinds of block/brick shape, also can be used for bamboo/PVC pallets.
4. It can be designed according to customers block shape and pallet size.

The characteristics of Huagong low-level automatic code brick machine:

The automatic production line for low-level code bricks of Huagong can separate the bricks of different specifications produced by different models of brick machines, arrange the blocks and finally arrange them into 1000-1200 (mm) square stacks for stacking (standard solid bricks can be stacked up to a maximum height at a time) Up to 12 layers), can choose to wrap the film through the brick. With the forklift holding clamp, it can be directly picked up on the site without pallets, and the stacking height can be 3 stacks.
The whole system adopts PLC + touch screen control, and only one person is required to operate it. The daily code brick volume is about 3800 boards / class. Can greatly save labor costs.

Technical parameters of automatic code brick production line

Total power	29.5KW (including 7.5KW air compressor) (actual operating power 14. 2KW)
Code brick maximum size	1200mm long, 1200mm wide, 1450mm high
Palletizing cycle	15 seconds average period
Total Weight	11 tons
Brick range	Regular bricks arranged in the same direction are tried, (outside of triangular bricks)
Applicable pallet size	Model 4 to Model 15

Automatic code brick output table:

Brick specifications	Pallet size specifications and output	Pallet size specifications and output	Pallet size specifications and output
Solid brick 240x50x115	Conventional layer: length 960xwidth 960, 76 pieces per layer, 52 pieces perforated layer; 15960 pieces per hour, 888 pieces per 12 layers	Regular layer of length 1200xwidth 1200, 120 layers per layer, 96 perforated layers, 20160 blocks per hour, 1216 layers per stack
Color brick 100x200*60	Regular layer of length 800xwidth 800, 32 per layer, 20 perforated layers, 6720 per hour, 692 per 22 layers	Regular layer of length 1000-width 1000 50 per layer, 35 perforated layers, 10500 pieces per hour, 1085 pieces per 22 layers	Regular layer of length 1200xwidth 1200, 120 pieces per layer, 96 pieces perforated layer, 25200 pieces per hour, 1416 pieces per stack 22 layers
concrete Block 390x190*190	Regular layer of length 800xwidth 800, 8 layers per layer, 6 perforated layers, 1 680 per hour, 7 layers per stack of 54	Regular layer of length 1200xwidth 1200, 18 per layer, 12 perforated layers, 3780 pieces per hour, 120 pieces per stack of 7 layers
With brick 190x50x115	Regular layer of length 950x width 950, 95 layers per layer, 65 perforated layers, 19950 blocks per hour, 1210 layers per stack	Regular layer length 1140-width 1140 132 per layer, 96 perforated layers, 27720 pieces per hour, 1548 pieces per 12 layers
