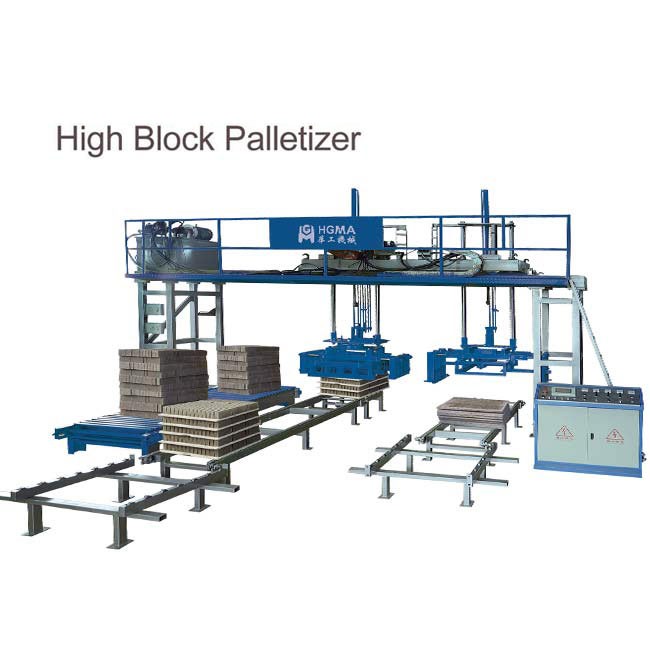

cement brick palletizing machine

HGMA cement brick palletizing machine is suitable for palletizing palletizing pallet which can be combined into a stack. Equipment includes into the board, or board-type, high-level gantry stacking machine (also supporting low-level push-stacking machine), flap machine, board down machine, a board machine.

The main technical parameters:
1, the whole area: ~ 12000 * 6000 (mm)
2, the total weight: ~ 12000KG
3, the whole power: 23KW
4, clamping size: According to the size of equipment allocated brick
5, palletizing cycle: 20-25 seconds / layer
6, the maximum clamping weight: 500KG
7, the minimum clamping brick high: ≥ 60mm

8, the largest gap between the main jaw: 1100 * 1000mm wide
